Beverly CX


  • Strong and lightweight alloy frame with lowered top center tube
  • Rear foot brake (coaster brake) and front rim brake (V-Brake) with alloy brake levers
  • 24" wheels sizeο»Ώ

Description

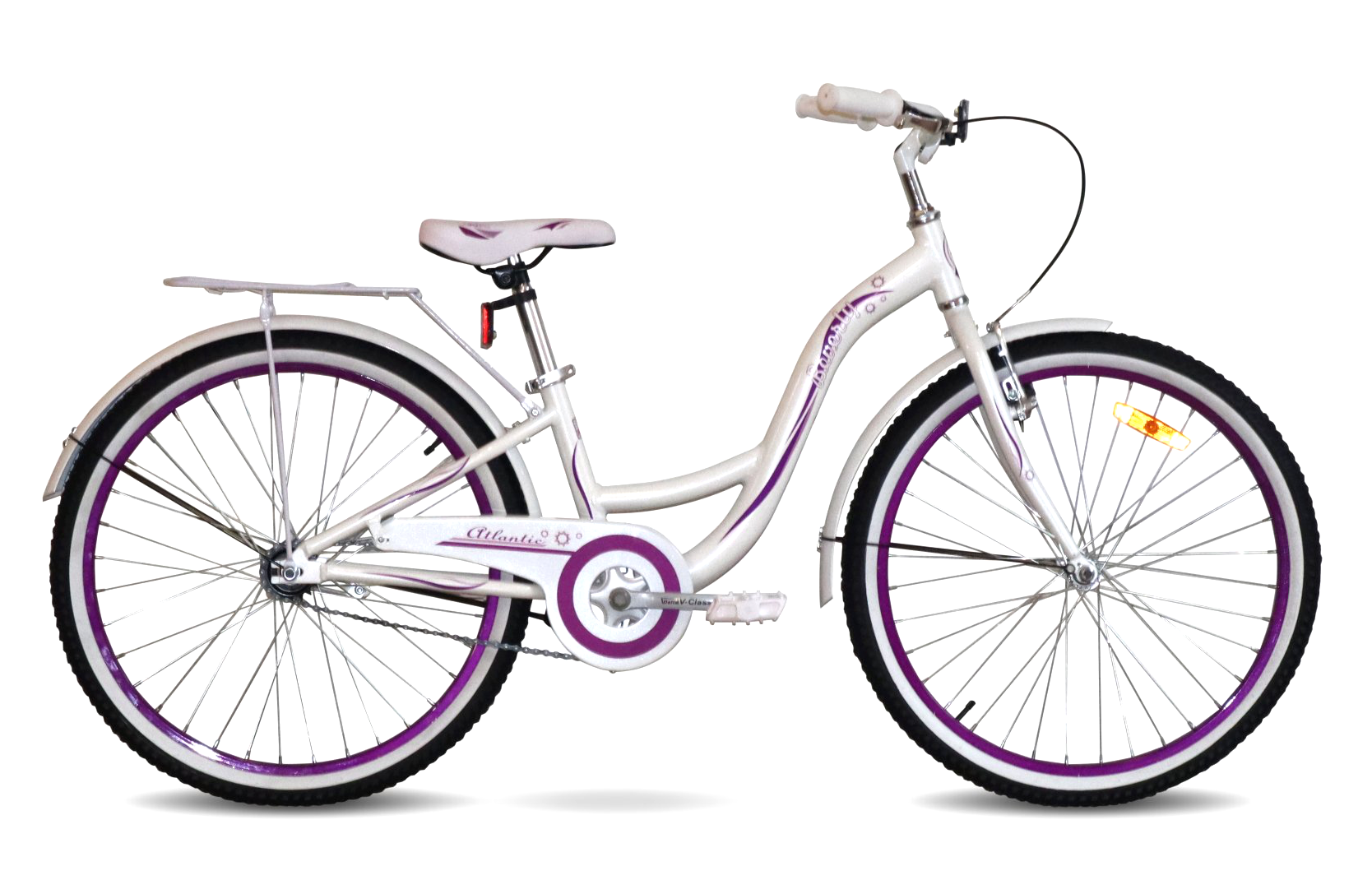

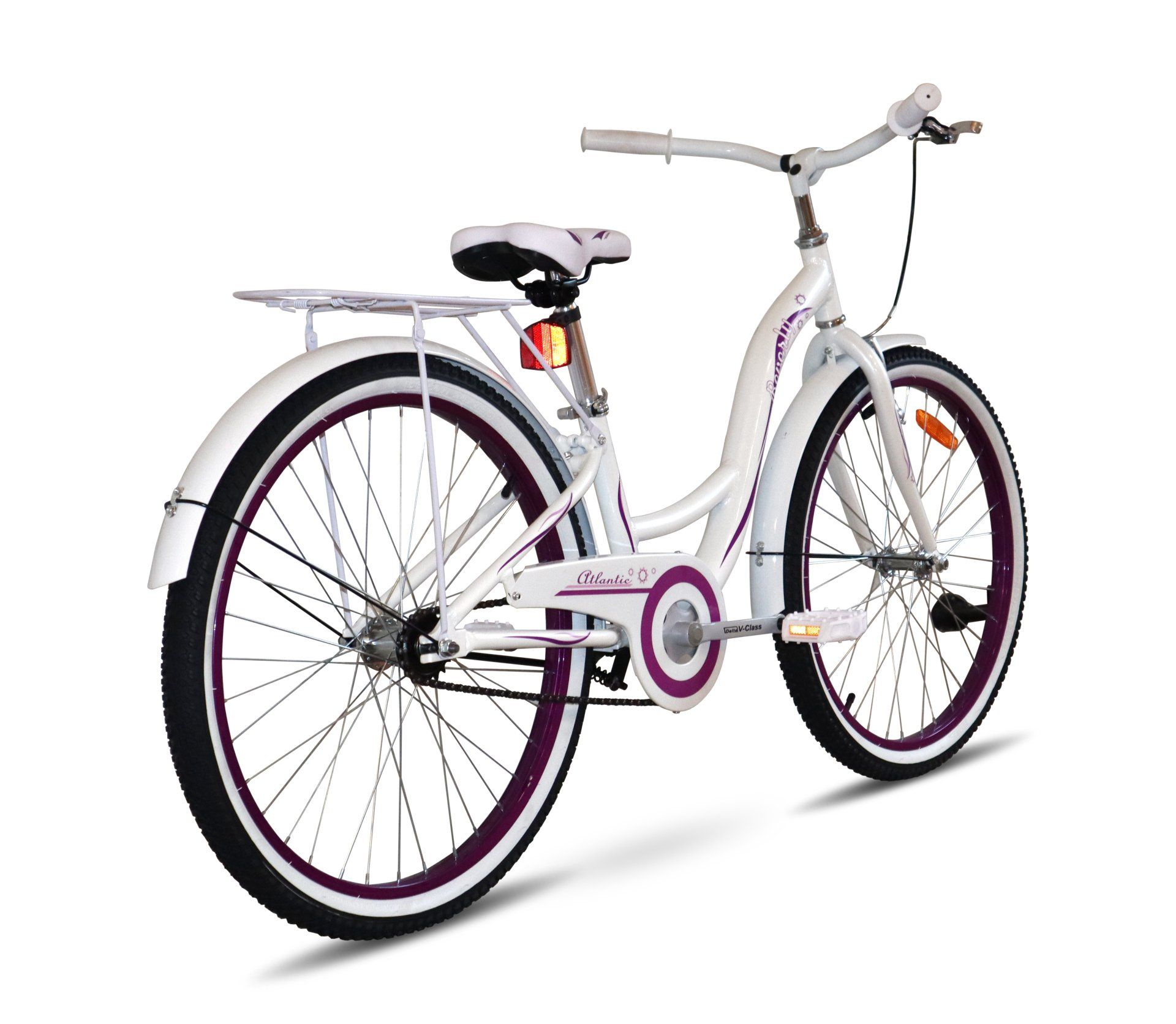

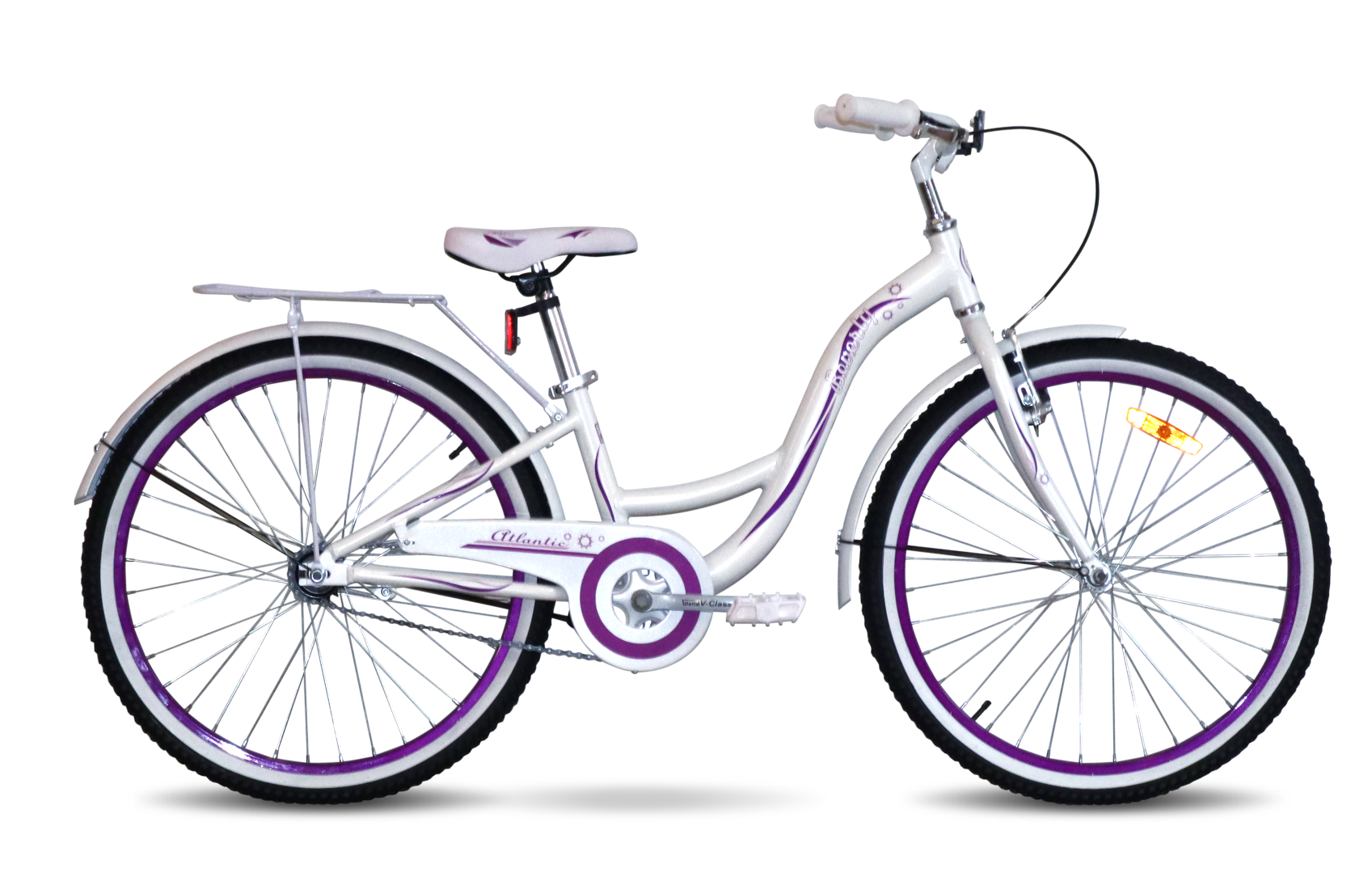

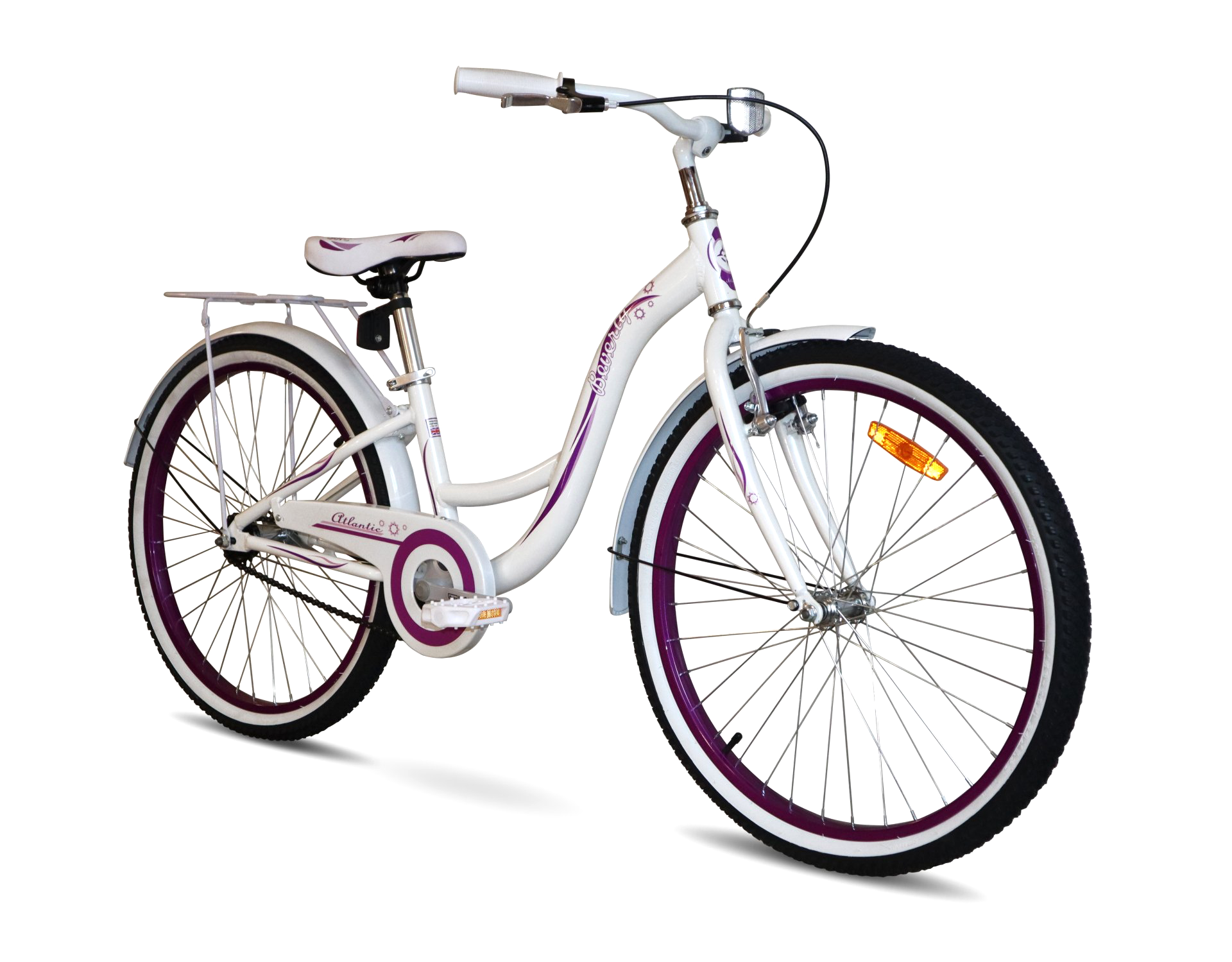

The teenage bicycle Atlantic Beverly CX is designed with an aluminum frame, which is the optimal solution in terms of strength and lightness. Additionally, the profile of the frame is reinforced with a powerful short tube in the area of ​​the seat and the main tube. Smooth lines of a frame form the underestimated geometry that allows unobstructed, easy landing and free jumping from the bicycle, also removing risk of an injury at unforeseen situations.


For the convenience of not yet fully experienced riders, the brake system has a combined device. The rear foot (coaster) brake works counterclockwise on the connecting rods, and the front brake is provided by a simple and reliable V-brake system, which clamps the wheel rim with two pads when the lever fixed on the steering wheel is compressed.


The size of the 24 '' inch wheels is optimal for easy acceleration, easy rolling and fast braking, which is great for teenage driving style.


The position of the handlebars and saddles in height is easily adjusted and allows you to choose a flat fit, which will allow you to ride a bike for a long time without any discomfort.


High-quality, lightweight bicycle components have high performance and long service life.ο»Ώ

Specification

Frame Atlantic Junior Monotube Type, alloy
Fork V-Class Rigid Junior, steel
Shifters -
Front derailleur -
Rear derailleur -
Freewheel V-Class City, 16t
Crankset V-Class Delta Kids, 40T, steel
Chain TEC
Bottom bracket Sealed cartridge
Brakes V-brake / rear coaster brake
Brake Levers Alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Coaster Brake, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace JR
Headset Atlantic M1 Headset
Rims V-Class Zeta, double wall, alloy
Spokes Stainless Steel
Tires Ornate MTB, 24"x1.95"
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Approx weights in kg 11,2
Color White / Purple
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 512
B* top tube horizontal 537
C chainstay 413
D headtube length 100
E head angle 71 °
F seat angle 72 °
H bb offset 25
K wheelbase 976
G seatpost diameter 31,8
