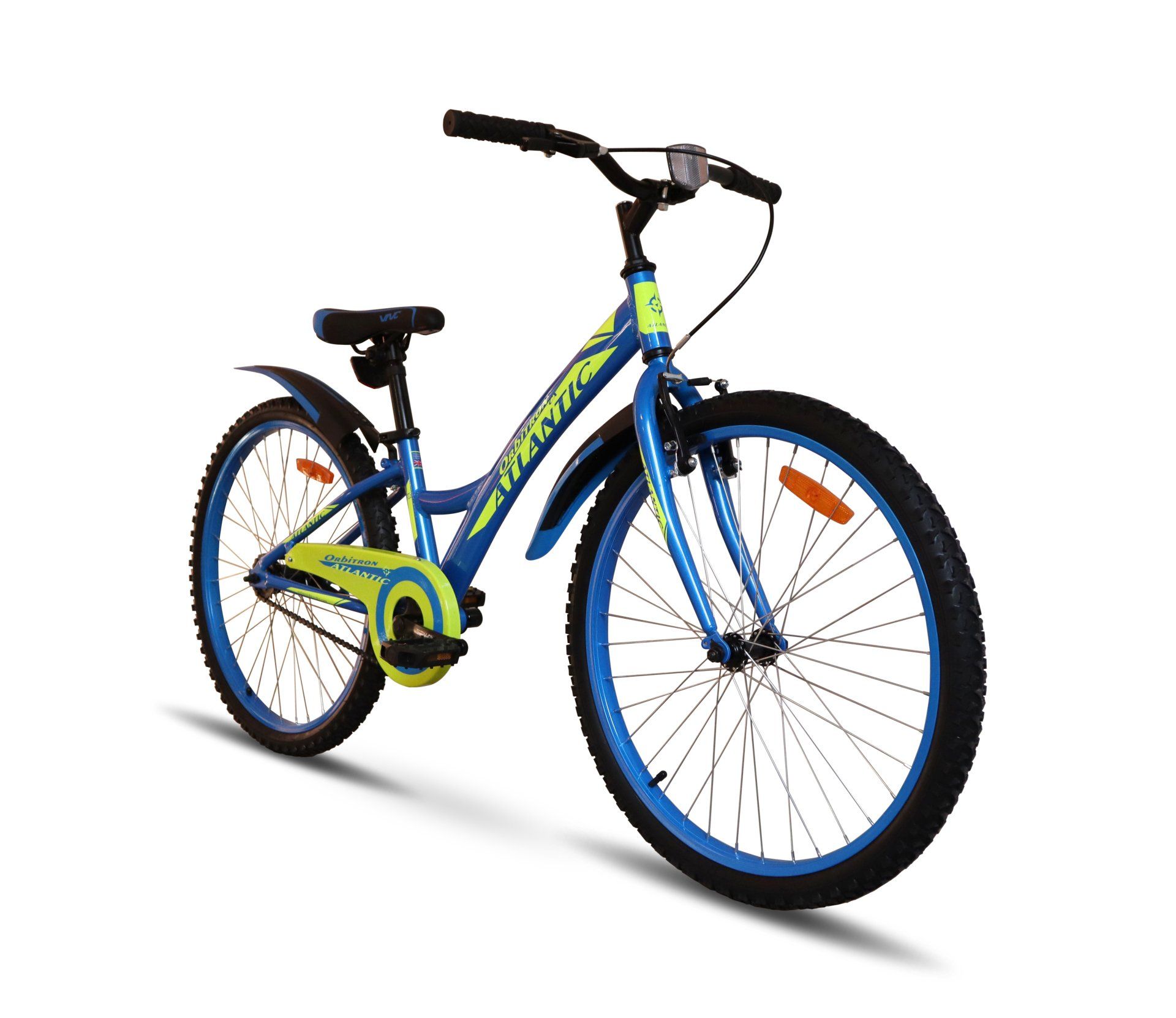

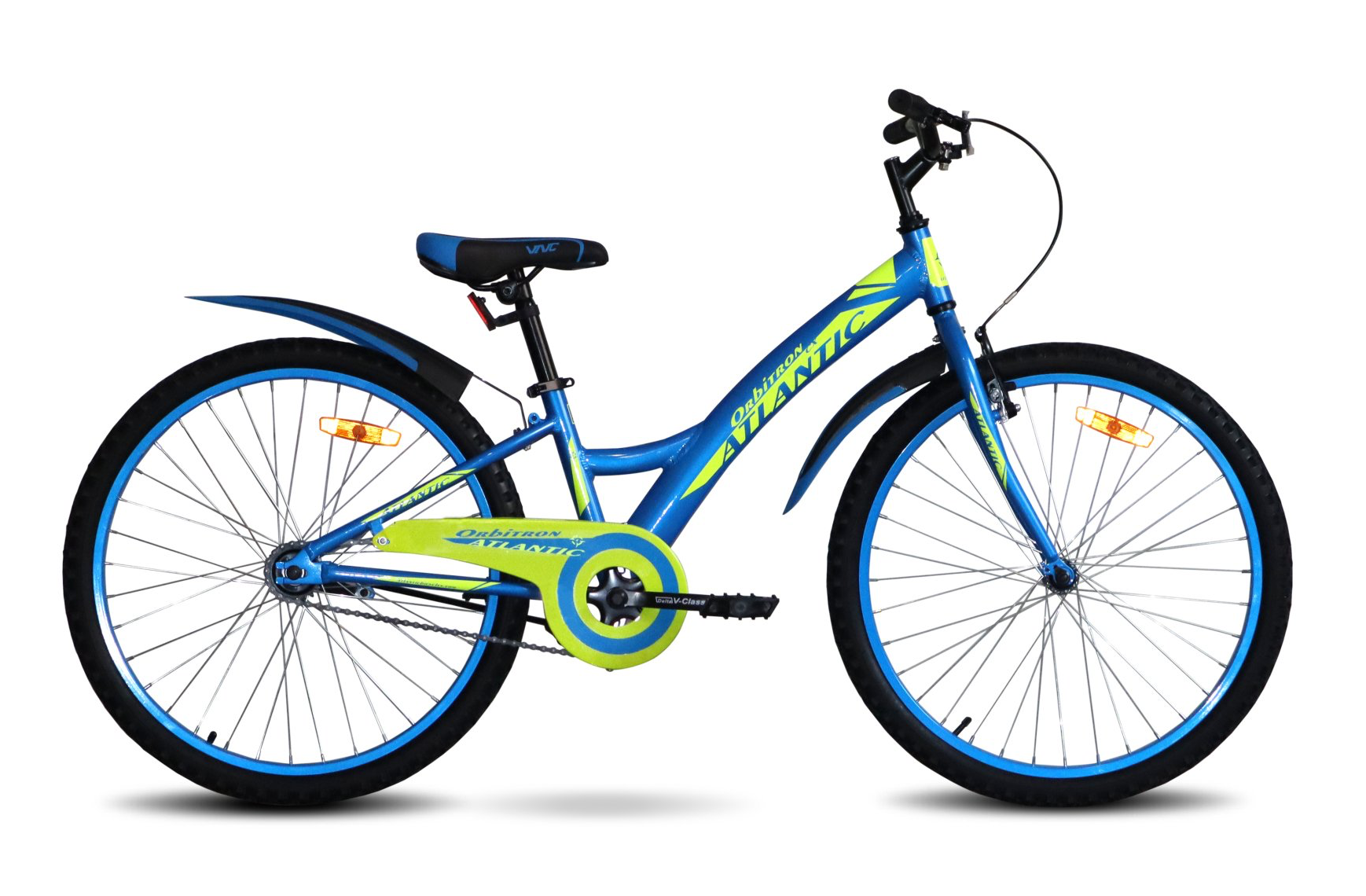

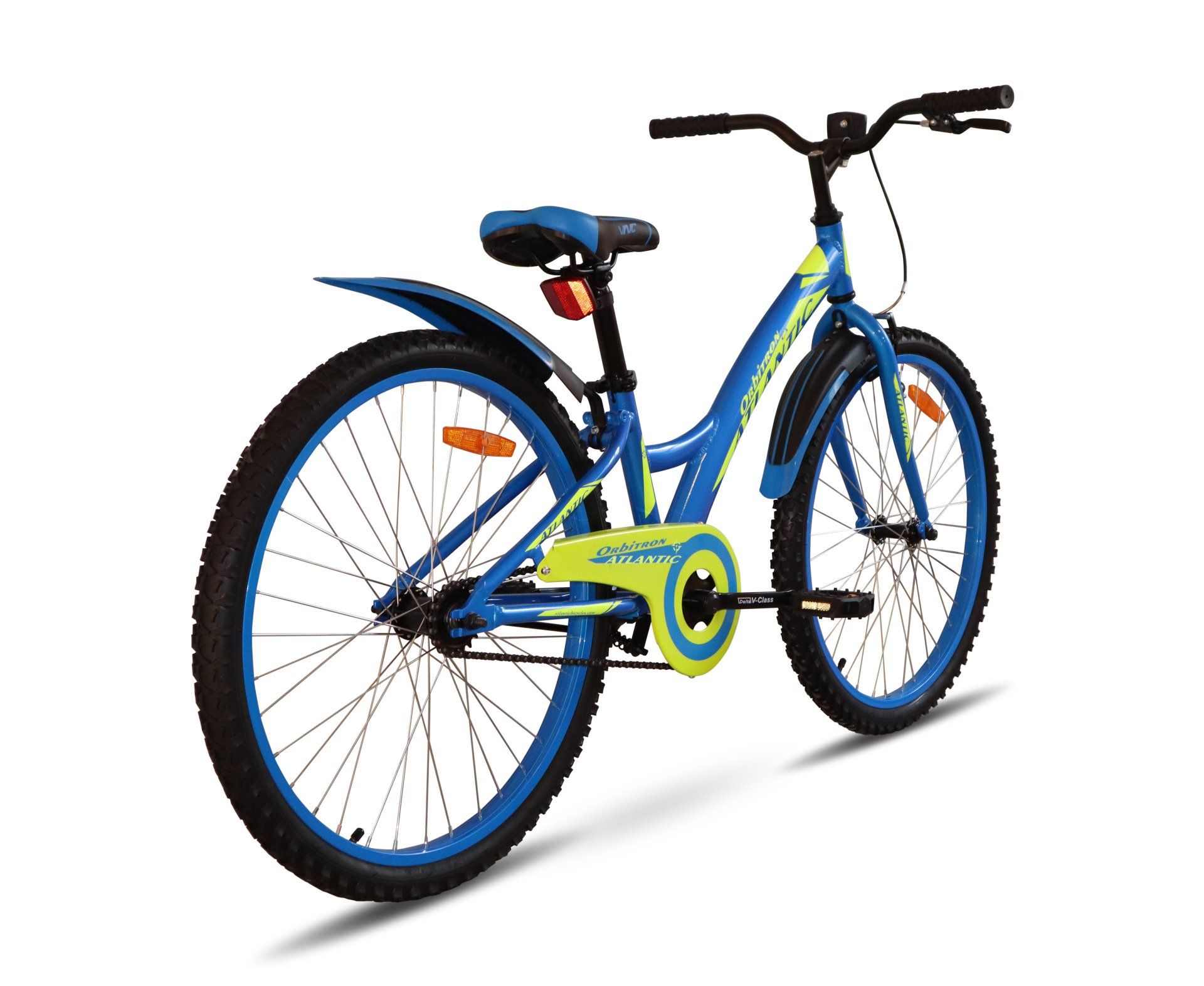

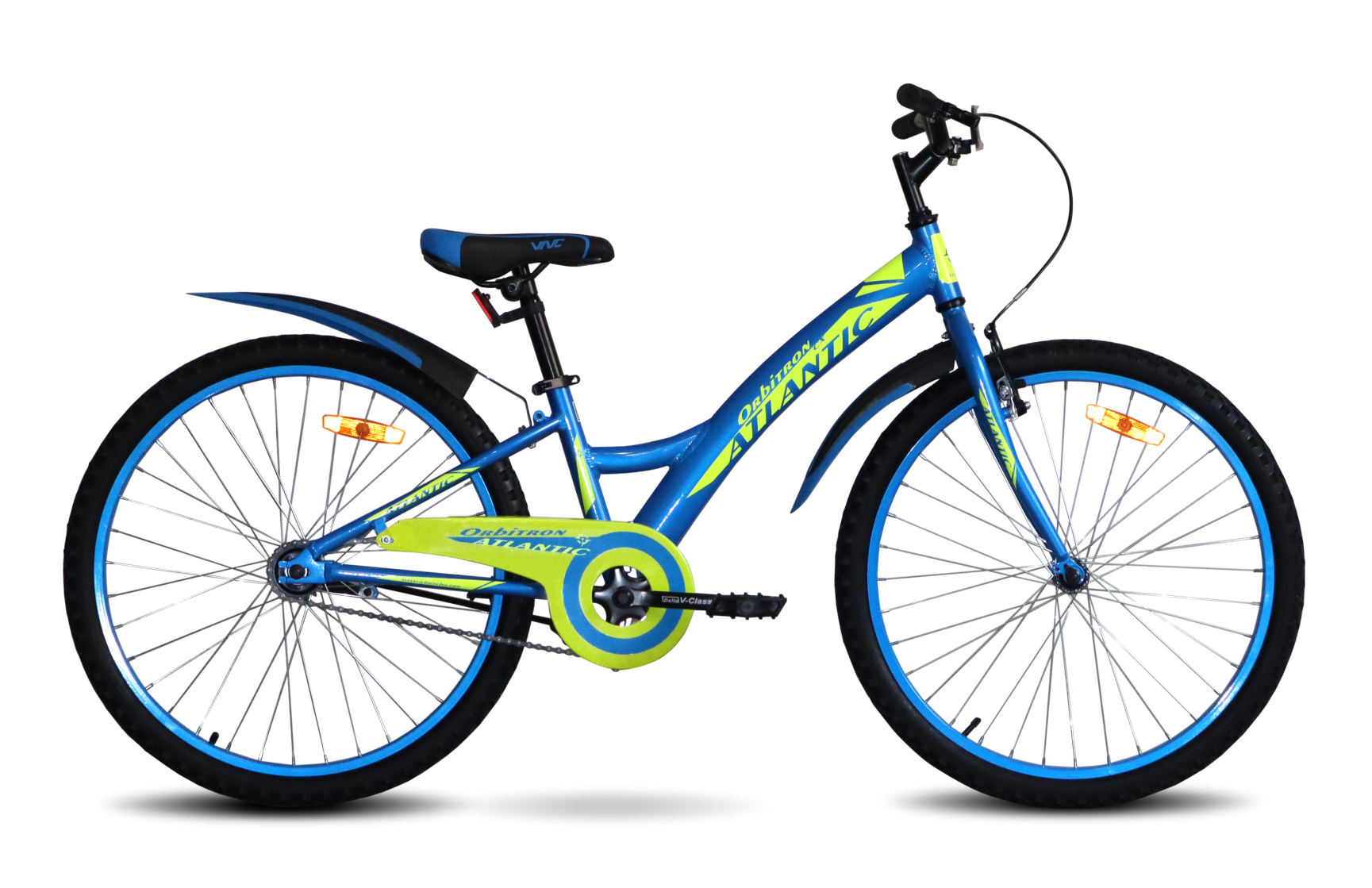

Orbitron CX

  • Strong and lightweight alloy frame with lowered top center tube
  • Rear foot brake (coaster brake) and front rim brake (V-Brake) with alloy brake levers
  • 24" wheels sizeο»Ώ

Description


The Atlantic Fusion NX bike is designed for teens with a sporty aluminum frame that is durable, lightweight and corrosion resistant. The lowered top tube of the frame allows a smooth fit and easy jumping off the bike. The bike's well-balanced profile is resistant to stress and riding in a variety of road conditions.


The steel, durable V-Class Delta suspension fork handle bumps in the road.


Powerful Logan mechanical disc brakes provide instant stopping power through pads that grip the wheel brake rotors. The braking system works by compressing levers on the handlebars of the bike, which respond to the slightest effort.


The bike is equipped with a 21 speed (3x7) drivetrain powered by Shimano Tourney components, providing ample gear headroom for urban riding and rough terrain. Shimano RevoShift shifters are installed around the steering wheel for precise, indexed gear shifting.


Wheels with a radius of 24'' are good in acceleration, coasting, speed, as well as in braking.


The ο»Ώadjustable saddle height allows you to choose a comfortable, even fit.


Lightweight, branded attachments are productive in work, do not require complex settings and have a long service life.

Specification

Frame Atlantic Junior Wave Type, alloy
Fork V-Class Rigid Junior, steel
Shifters -
Front derailleur -
Rear derailleur -
Freewheel V-Class City, 16t
Crankset V-Class Delta Kids, 40T, steel
Chain TEC
Bottom bracket Sealed cartridge, BSA
Brakes V-brake / rear coaster brake
Brake Levers Alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Coaster Brake, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace JR
Headset Atlantic M1 Headset
Rims V-Class Zeta, double wall, alloy
Spokes Stainless Steel
Tires Ornate MTB, 24"x1.95"
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Approx weights in kg 10,6
Color Blue / Lime
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 512
B* top tube horizontal 537
C chainstay 413
D headtube length 100
E head angle 71 °
F seat angle 72 °
H bb offset 25
K wheelbase 976
G seatpost diameter 31,8
