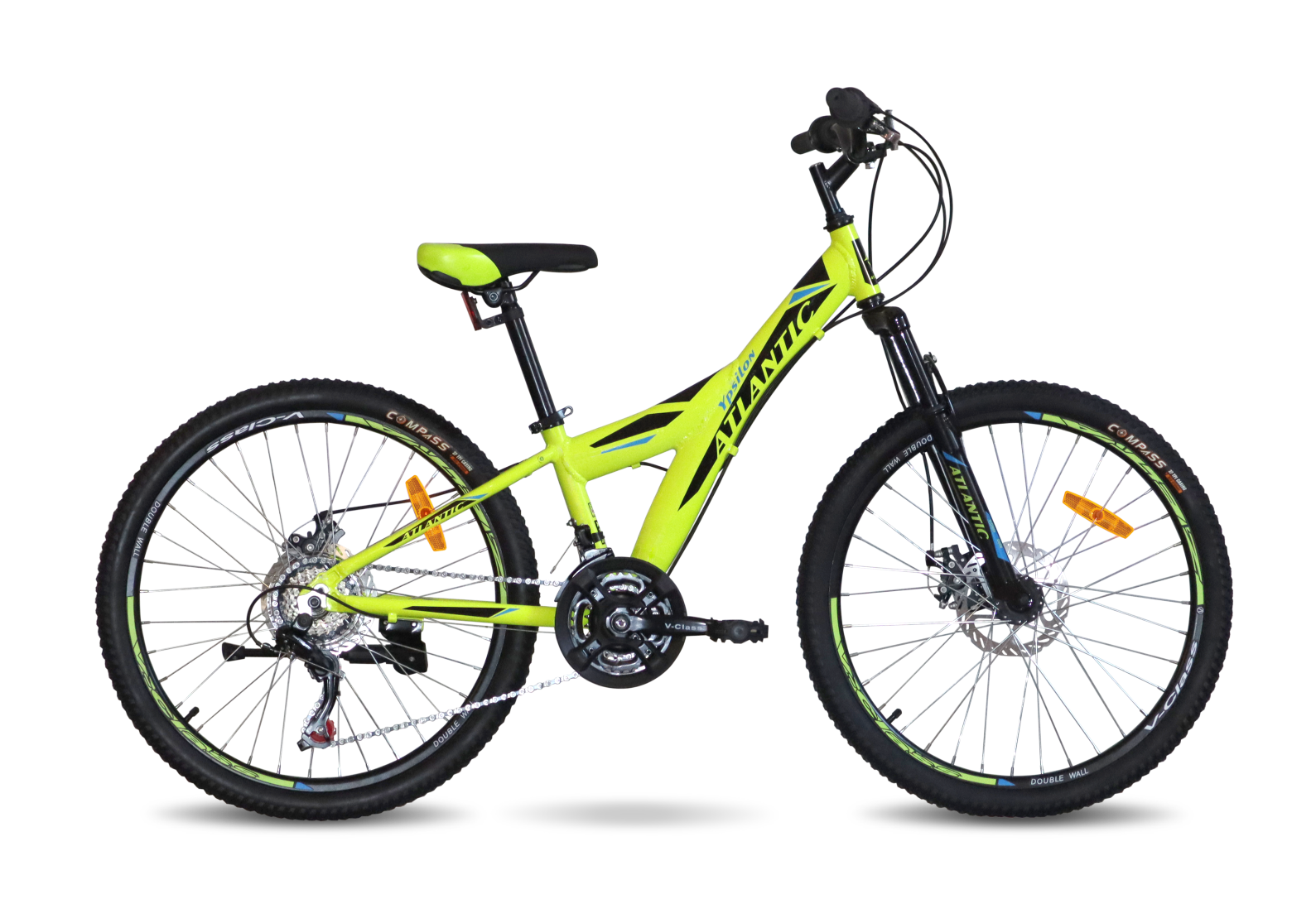

Ypsilon NX

  • Strong and lightweight alloy frame with lowered top center tube
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Leversο»Ώ
  • Shimano Tourney 7 speed rear derailleur and 3 speed front derailleur with Shimano shifters
  • Index freewheel 13-28T, 7 Speed
  • 24" wheels size
  • Equipped with plastic fenders and rear kick stand

Description


The teenage bicycle Atlantic Ypsilon NX is issued with a strong and easy aluminum frame which is steady against corrosion. The Y-shaped, reinforced frame has an underestimated geometry that promotes unobstructed landing and easy jumping from the bicycle without risks of injuries and hooks. Smooth lines of aluminum profile evenly distribute the load on the bike and have a high margin of safety.


Processing of roughnesses of the road and difficult sites is carried out by a shock-absorbing steel fork V-Class Delta.


Fast and efficient braking is provided by the powerful and reliable Logan mechanical disc brake system, which clamps the rotors of the front and rear wheels with special pads, triggered by the force of the levers fixed on the steering wheel, which allows you to fully control the movement.


The bike is equipped with a 21-speed 3x7 transmission, running on branded components Shimano Tourney, which provides a sufficient supply of gear for riding in different road conditions. Accurate and smooth switching is provided by Shimano RevoShift coins mounted on the handlebars of the bicycle.


The 24'' inch wheels accelerate easily and maintain speed.


Height-adjustable seat tube allows you to choose the optimal, smooth fit.


Lightweight quality components are stable in operation and have a long service life.ο»Ώ

Specification

Frame Atlantic MTB Y-Type Junior, alloy
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain JX 50
Bottom bracket Sealed cartridge
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Logan, alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Delta, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma. alloy
Saddle V-Class MontRace
Headset Atlantic M1 Headset
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 24" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 12,1
Color Lime / Black
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 480
B* top tube horizontal 492
C chainstay 415
D headtube length 102
E head angle 71 °
F seat angle 73 °
H bb offset 25
K wheelbase 994
G seatpost diameter 31,8
