Rekon NS

  • Strong and durable steel frame
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28Tο»Ώ

Description

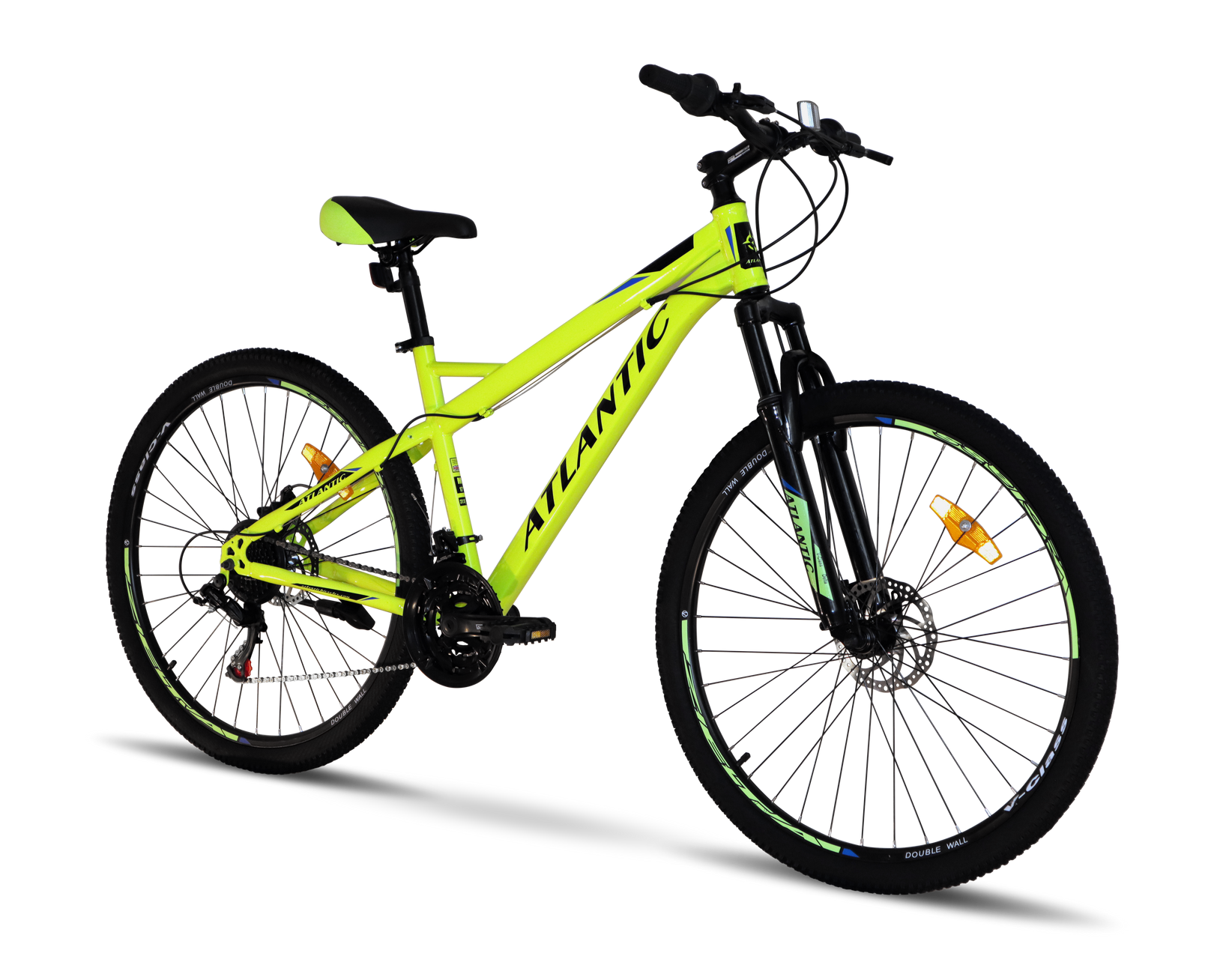

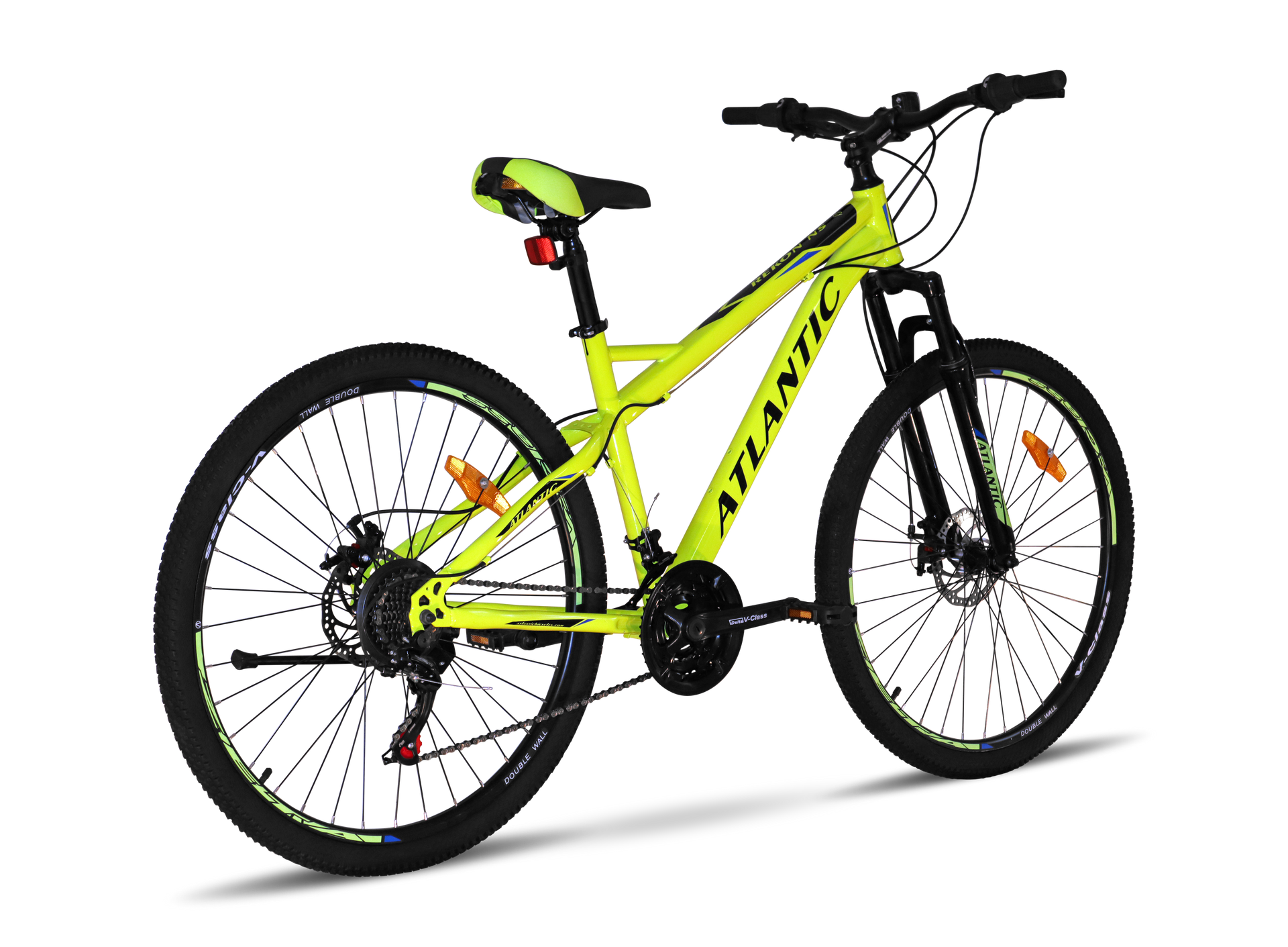

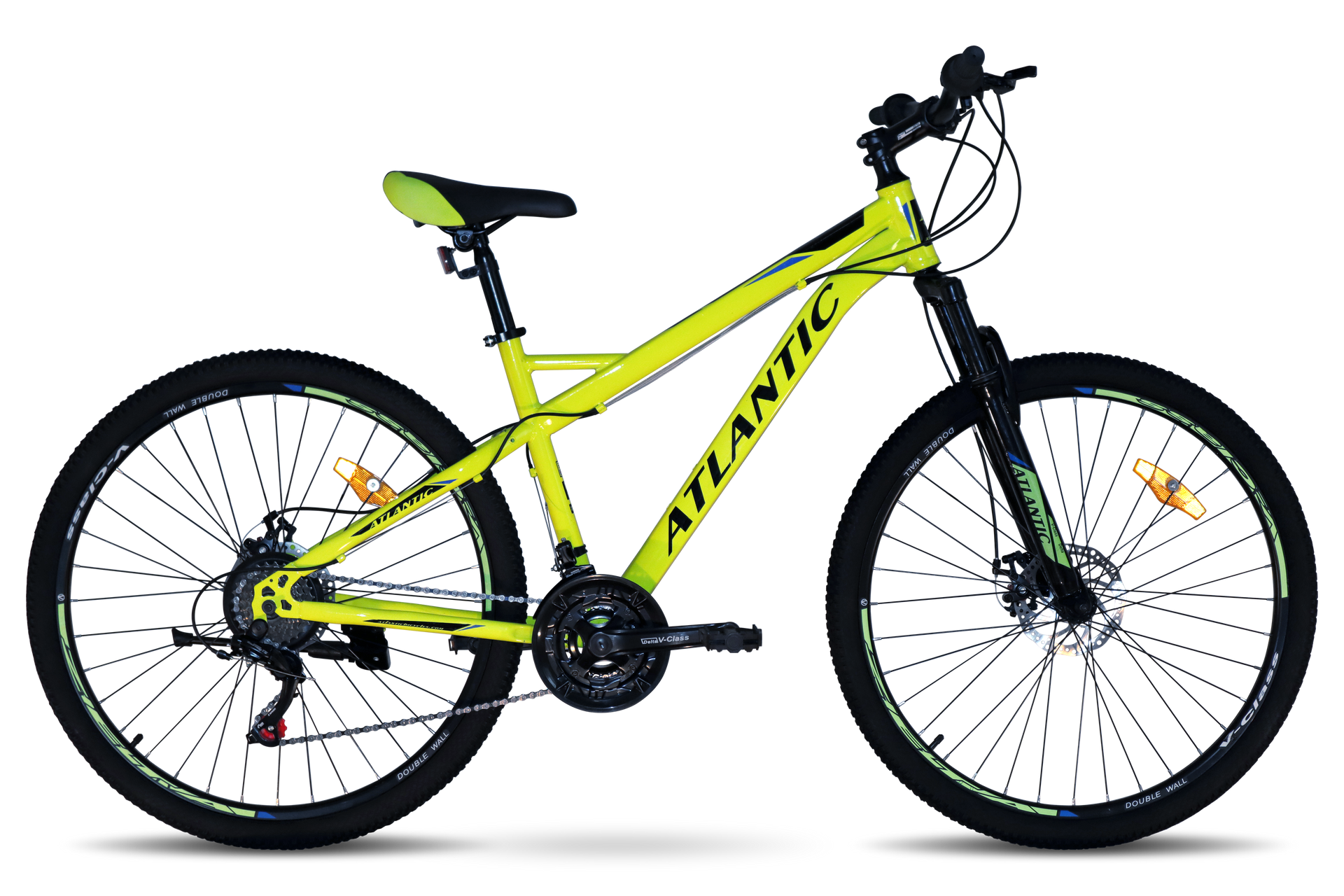

The Atlantic Recon NS mountain bike is produced with a strong and reliable steel frame, which will protect the rider from sudden breakdowns and other emergency situations, as it is able to withstand the most severe loads.


A robust V-Class Delta steel suspension forks handle bumps and other tricky road sections.


Powerful stopping power is provided by Logan mechanical disc brakes with aluminum handlebar grips, with the force of which the pads instantly grip the rotors of the front and rear wheels.


The bike is equipped with a 21-speed transmission (3x7), which is equipped with proprietary Shimano Tourney components. Shimano RevoShift shifters, mounted on the circumference of the handlebars, are responsible for precise, index shifting.


Wheels with a radius of 26" and 29" are good in acceleration, coasting and high-speed modes, as well as optimal in braking.


The height-adjustable seat tube allows you to choose a comfortable, straight fit, which is important for heavy traffic over long distances.ο»Ώ


High-quality and undemanding components in operation are efficient in operation, do not require complex settings and have a long service life.

Specification

Frame Atlantic MTB, steel
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta pro, 24T/34T/42T, steel
Chain JX 50
Bottom bracket Sealed cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Delta, steel
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 26" / 27,5" / 29" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 17,3
Color Lime / Black, Black / Red
Frame size XS6 / M6 / L9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 M7 L9
A bb center to top of seattube 360 440 490
B top tube parallel 538 562 574
B* top tube horizontal 555 586 605
C chainstay 440 445 445
D headtube length 110 120 125
E head angle 69,5 ° 70 ° 69,5 °
F seat angle 73,5 ° 73 ° 71,5 °
H bb offset 45 50 70
K wheelbase 1061 1092 1103
G seatpost diameter 31,8 31,8 31,8
