Xenon DX


  • Strong and lightweight alloy frame
  • Alloy rigid fork (race type)
  • Mechanical disc brakes with alloy dual control levers
  • 2x8 speed reliable drive train
  • Index cassette, 11-32T

Description


The Atlantic Kreston DX is a gravel bike  made with a durable and lightweight aluminum racing frame that is resistant to corrosion, moisture, and temperature extremes. The geometry of the frame is balanced to overcome difficult sections of the track and has strong lines with an increased clearance triangle.


Good stopping stopping power is provided by V-Class Zeta mechanical disc brakes with aluminum  handlebar levers, which are cabled to the pads that grip the front and rear wheel rotors.


The bike's drivetrain includes 2x8 speeds for Sensah Reflex gear (or 2x8 speeds for Shimano Claris gear) equipment. Sensah Reflex (or Shimano Claris) dual control shifters, mounted on the circumference of the handlebars, are responsible for the index shifting.


The 700Cx28C wheels are good for speeding, rolling and overcoming difficult road surfaces, and the installed protective fenders with an integrated rear flasher prevent the splashing of road mud in bad weather and increase driving safety in the dark.


The seat tube height adjustment allows the rider to find the most comfortable position.


Branded and undemanding V-Class bicycle components give high performance over a long period of use.

Specification

Frame Atlantic Race ProLite, alloy
Fork V-Class Delta Race, rigid, steel
Shifters Sensah Reflex ST-R80, dual control, 2x8 speed / Shimano Claris ST-R2000, dual control, 2x8 speed
Front derailleur Sensah Reflex FD-00-R80-J2, index, 2 speed / Shimano Claris FD-R2000, index, 2 speed
Rear derailleur Sensah Reflex RD-M8A-SGS, index, 8 speed / Shimano Claris RD-R2000-SS, index, 8 speed
Cassette Skilful CS-M220, cassette type, index, 11-32T
Crankset V-Class Delta Pro, 42T/52T, steel
Chain KMC Z8.3
Bottom bracket Sealed Cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires Road Sport, 700C x 28C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 12,3
Color Black / Orange
Frame size M8 (52cm) / L8 (57cm)

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

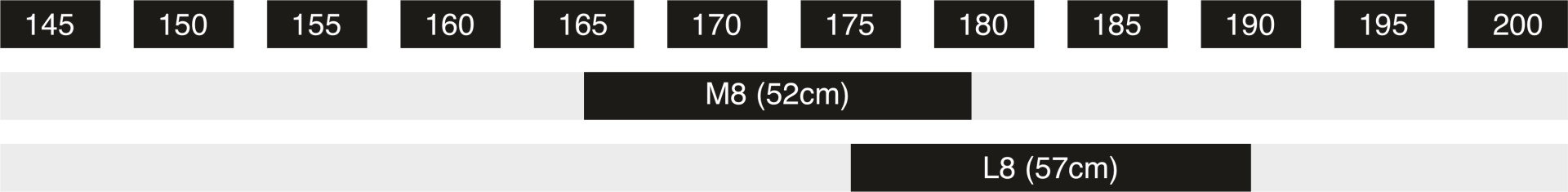

Size chart

Geometry

M8 (52 cm) L8 (57 cm)
A bb center to top of seattube 520 570
B top tube parallel 533 551
B* top tube horizontal 545 570
C chainstay 425 425
D headtube length 135 180
E head angle 70 ° 71,5 °
F seat angle 75 ° 73,5 °
H bb offset 70 71
K wheelbase 1045 1052
G seatpost diameter 31,8 31,8
