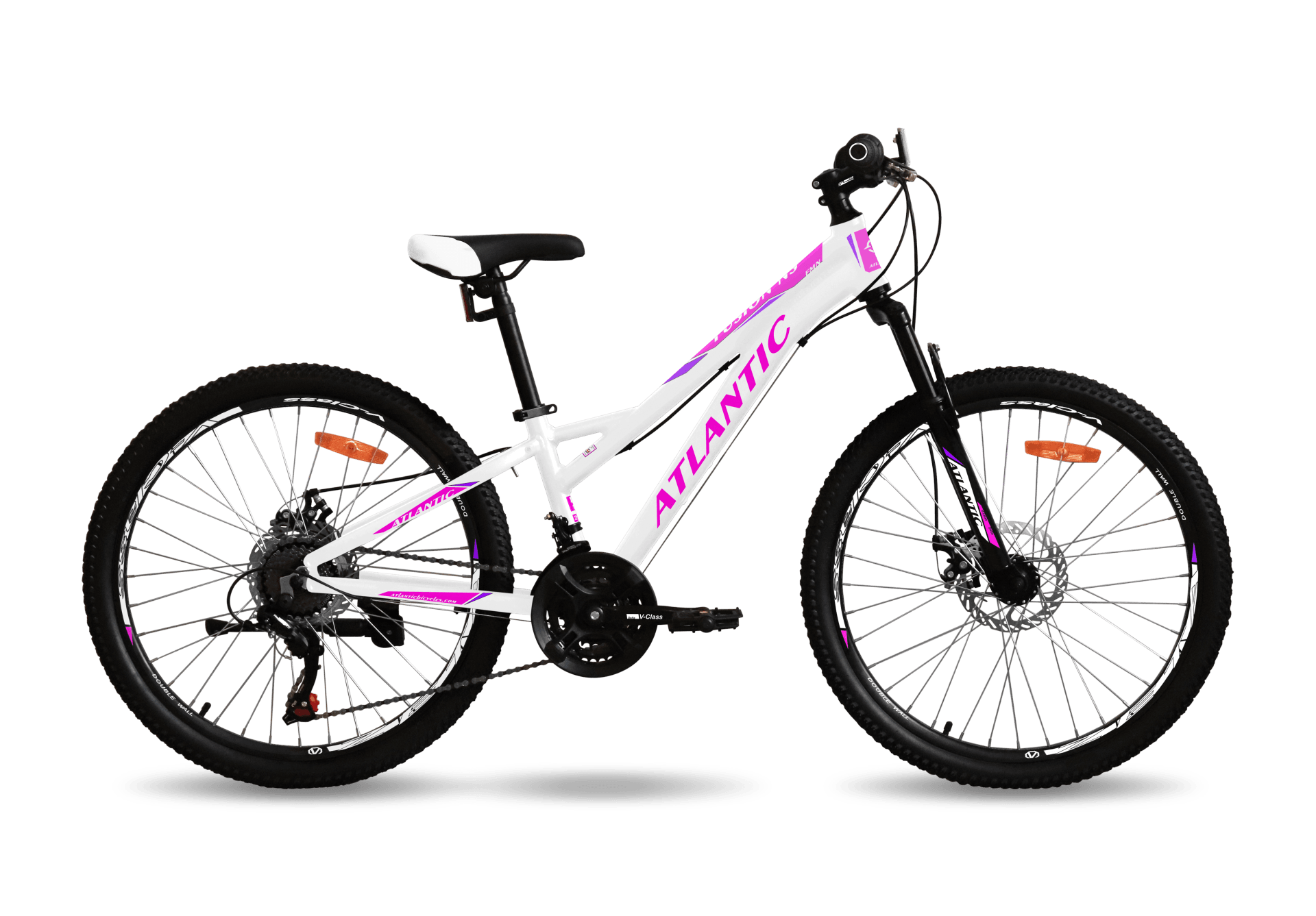

Fusion NS

  • Strong and durable steel frame
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel 13-28T, 7 Speed
  • 24" wheels size
  • Equipped with plastic fenders and rear kick stand

Description


The teenage bicycle Atlantic Fusion NS is made with a steel frame, which has a high margin of safety and is able to withstand the heaviest loads. The geometry of the frame is understated with a narrow clearance triangle, which allows free landing and unobstructed jumping from the bike. Smooth profile lines have an optimal shape for a variety of skating styles, including moderately extreme.


Instant stopping by force is provided by a reliable mechanical disk brake system which clamps wheel rotors with blocks. Triggered by compressing the brake levers on the steering wheel, connected by a cable to the brake module.


The 21-speed 3x7 transmission runs on branded Shimano Tourney components and provides a wide range of gears for riding in the city and beyond. Shimano RevoShift coins perform precise and smooth gear changes.


Wheel radius 24 inches allows you to quickly gain speed, roll freely and brake.ο»Ώ


The height-adjustable seat tube helps to adjust the most comfortable, level position for the cyclist.


The lightened qualitative components from the leading world manufacturer are effective in work and provide long service life.

Specification

Frame Atlantic MTB, steel
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Zeta, 24T/34T/42T, alloy
Chain JX 50
Bottom bracket Sealed cartridge
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Logan, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Delta, steel
Saddle V-Class X-Race
Headset Neco M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB 24" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 14,3

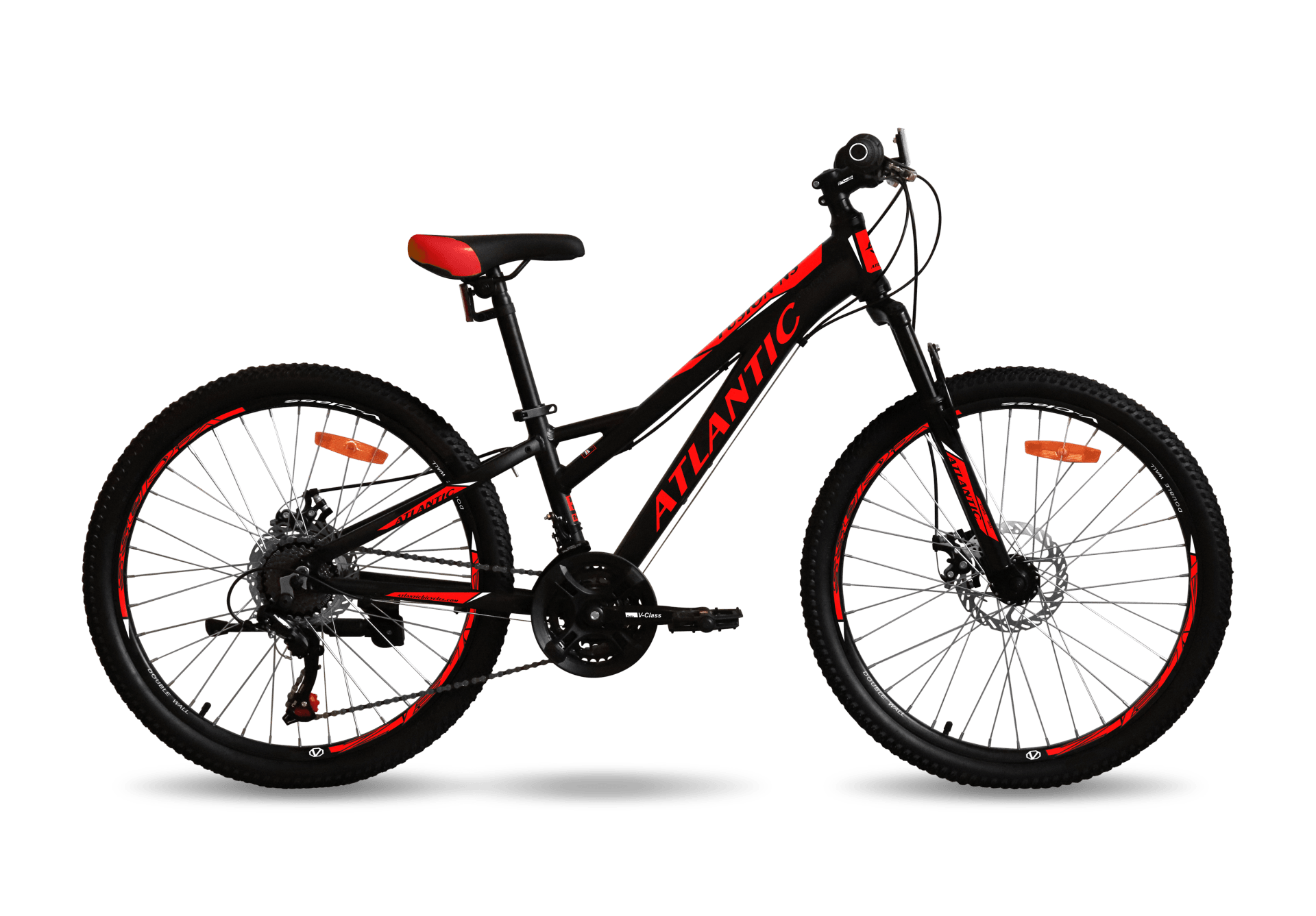

Color Lime / Black, Black / Red
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

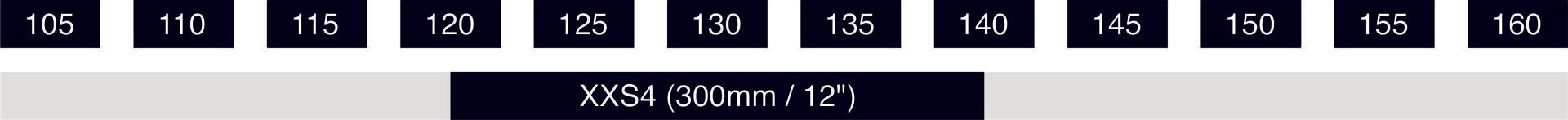

Size chart

Geometry

XXS4
A bb center to top of seattube 300
B top tube parallel 519
B* top tube horizontal 527
C chainstay 420
D headtube length 110
E head angle 69,5 °
F seat angle 73,5 °
H bb offset 45
K wheelbase 1011
G seatpost diameter 31,8
