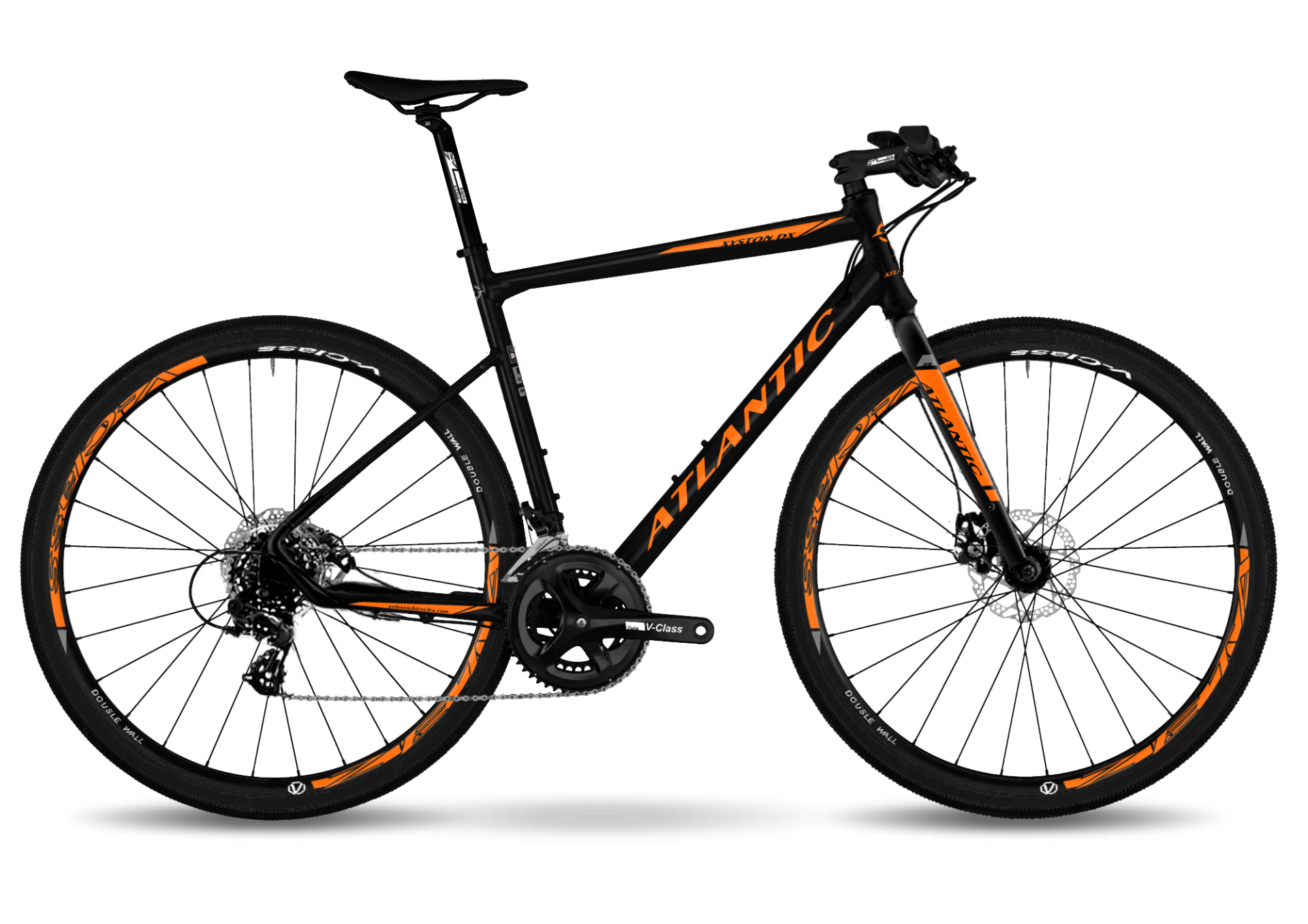

Xyston DX Pro


  • Strong and lightweight alloy frame
  • Alloy rigid fork (race type)
  • Hydraulic disc brakes with alloy levers
  • 3x8 speed reliable drive train
  • Index cassette, 11-32T

Description


The Atlantic Xyston DX Pro is a gravel bike  made with a durable and lightweight aluminum racing frame that is resistant to corrosion, moisture, and temperature extremes. The geometry of the frame is balanced to overcome difficult sections of the track and has strong lines with an increased clearance triangle.


Good stopping stopping power is provided by V-Class Sigma hydraulic disc brakes with aluminum  handlebar levers, which are cabled to the pads that grip the front and rear wheel rotors.


The bike's drivetrain includes 3x8 speeds Shimano Tourney TX equipment. Shimano trigger shifters, mounted on the circumference of the handlebars, are responsible for the index shifting.


The 700Cx38C wheels are good for speeding, rolling and overcoming difficult road surfaces, and the installed protective fenders with an integrated rear flasher prevent the splashing of road mud in bad weather and increase driving safety in the dark.


The seat tube height adjustment allows the rider to find the most comfortable position.


Branded and undemanding V-Class bicycle components give high performance over a long period of use.

Specification

Frame Atlantic Race ProLite, alloy
Fork V-Class Zeta Race, rigid, alloy
Shifters V-Class KDSG-71, index, 3x8 speed / Shimano Altus SL-M315, index, 3x8 speed
Front derailleur Shimano Tourney FD-TZ500, index, 3 speed
Rear derailleur Shimano Tourney RD-TX800, index, 8 speed
Cassette Skilful CS-M220, cassette type, index, 11-32T
Crankset V-Class Delta Pro, 28T/38T/48T, alloy
Chain KMC Z8.3
Bottom bracket Sealed Cartridge BSA
Brakes V-Class Sigma, hydraulic disc brake, rotor: 160/160 mm / Tektro HD-M275, hydraulic
Brake Levers V-Class Sigma, hydraulic disc brake, alloy / Tektro HD-M275, hydraulic disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires Race Sport, 700C x 38C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 12,1
Color Black / Orange
Frame size M8 (49cm) / L8 (53cm)

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

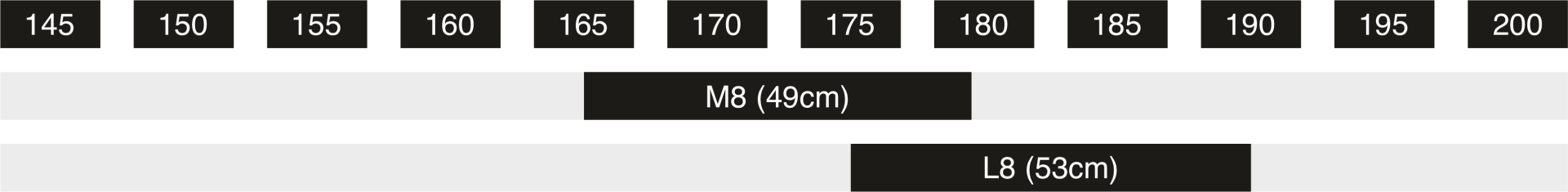

Size chart

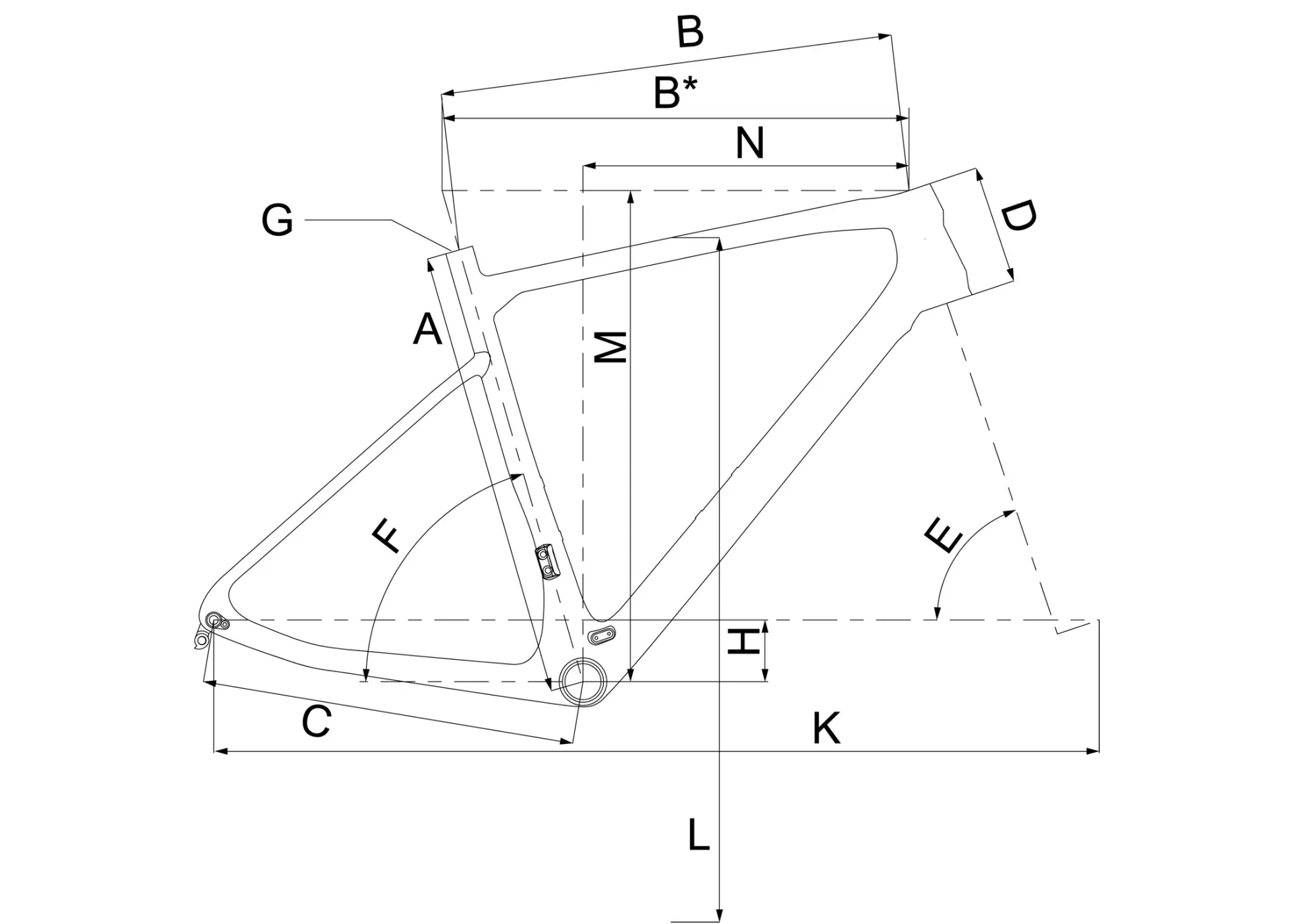

Geometry

M8 (49 cm) L8 (53 cm)
A bb center to top of seattube 490 520
B top tube parallel 515 540,4
B* top tube horizontal 535 560,5
C chainstay 450 450
D headtube length 135 165
E head angle 71,5 ° 71,5 °
F seat angle 73,5 ° 73,5 °
H bb offset 71 71
K wheelbase 1025 1051,5
G seatpost diameter 31,8 31,8
