Xenon NX

  • Strong and lightweight alloy frame
  • Steel rigid fork (race type)
  • Mechanical disc brakes with alloy dual control levers
  • 2x7 speed reliable drive train
  • Index cassette, 11-34T

Description


The Atlantic Xenon NX ο»Ώis a gravel bike ο»Ώmade with a durable and lightweight aluminum racing frame that is resistant to corrosion, moisture, and temperature extremes. The geometry of the frame is balanced to overcome difficult sections of the track and has strong lines with an increased clearance triangle.


Good stopping stopping power is provided by V-Class Zeta mechanical disc brakes with aluminum  handlebar levers, which are cabled to the pads that grip the front and rear wheel rotors.


The bike's drivetrain includes 14 speeds (2x7) and is powered by quality Sensah R7 equipment. Sensah dual control shifters, mounted on the circumference of the handlebars, are responsible for the index shifting.


The 700Cx38C wheels are good for speeding, rolling and overcoming difficult road surfaces, and the installed protective fenders with an integrated rear flasher prevent the splashing of road mud in bad weather and increase driving safety in the dark.


The seat tube height adjustment allows the rider to find the most comfortable position.


Branded and undemanding V-Class bicycle components give high performance over a long period of use.

Specification

Frame Atlantic Race ProLite, alloy
Fork V-Class Delta Race, rigid, steel
Shifters Sensah R7 ST-R70, dual control, 2x7 speed
Front derailleur Sensah R7 FD-R70, index, 2 speed
Rear derailleur Sensah R7 FD-M70-SGS, index, 7 speed
Cassette S-Ride CS-M200, cassette type, index, 11-34T
Crankset V-Class Delta Pro, 42T/52T, steel
Chain JX 50
Bottom bracket Sealed Cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Sigma, alloy
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class RoadRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires Race Sport, 700C x 38C
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro Race
Approx weights in kg 12,7
Color Black / Lime
Frame size M8 (49cm) / L8 (53cm)

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

M8 (49 cm) L8 (53 cm)
A bb center to top of seattube 490 520
B top tube parallel 515 540,4
B* top tube horizontal 535 560,5
C chainstay 450 450
D headtube length 135 165
E head angle 71,5 ° 71,5 °
F seat angle 73,5 ° 73,5 °
H bb offset 71 71
K wheelbase 1025 1051,5
G seatpost diameter 31,8 31,8

Follow & Share

You may also be interested in...

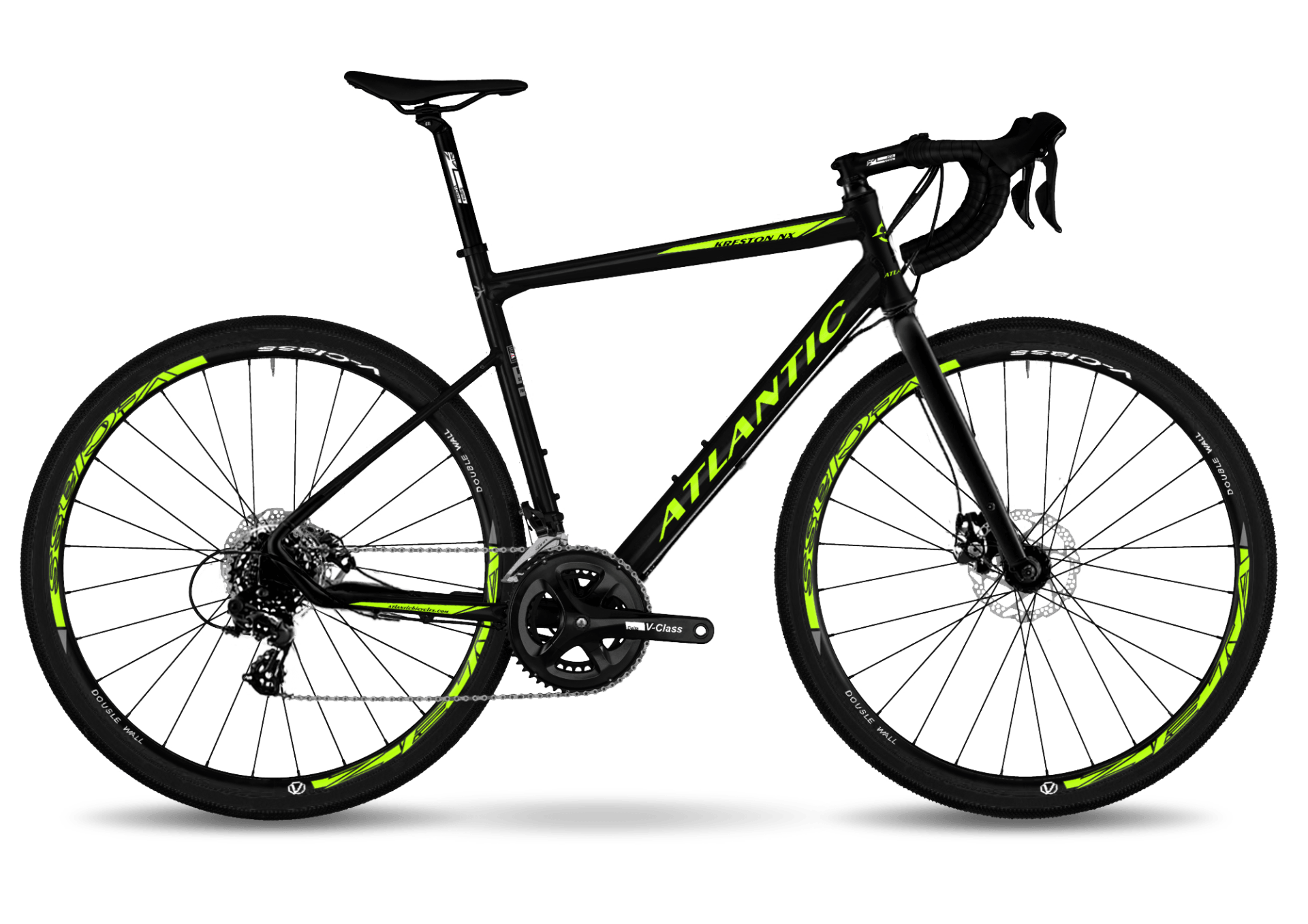

  • Kreston NX
