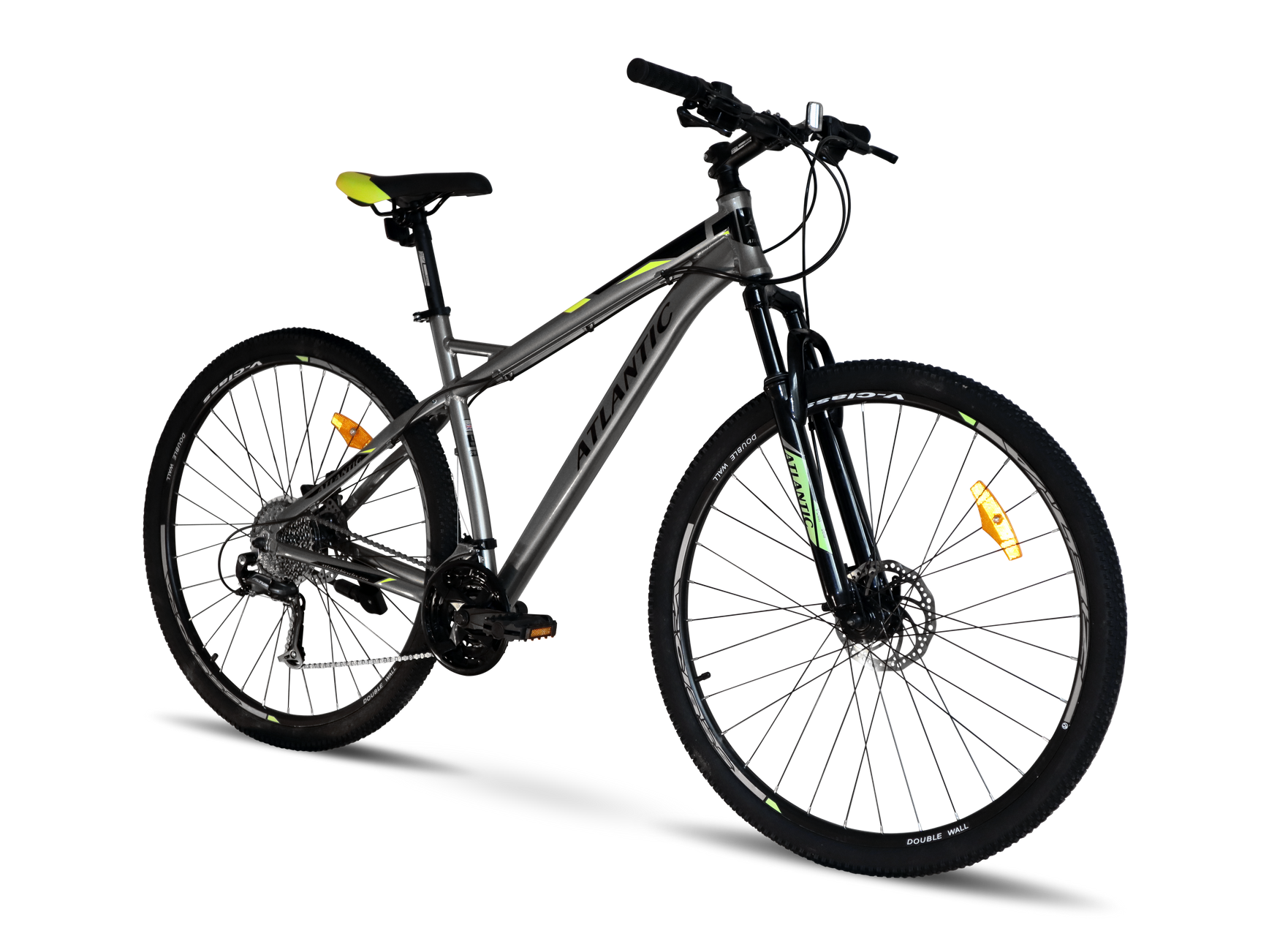

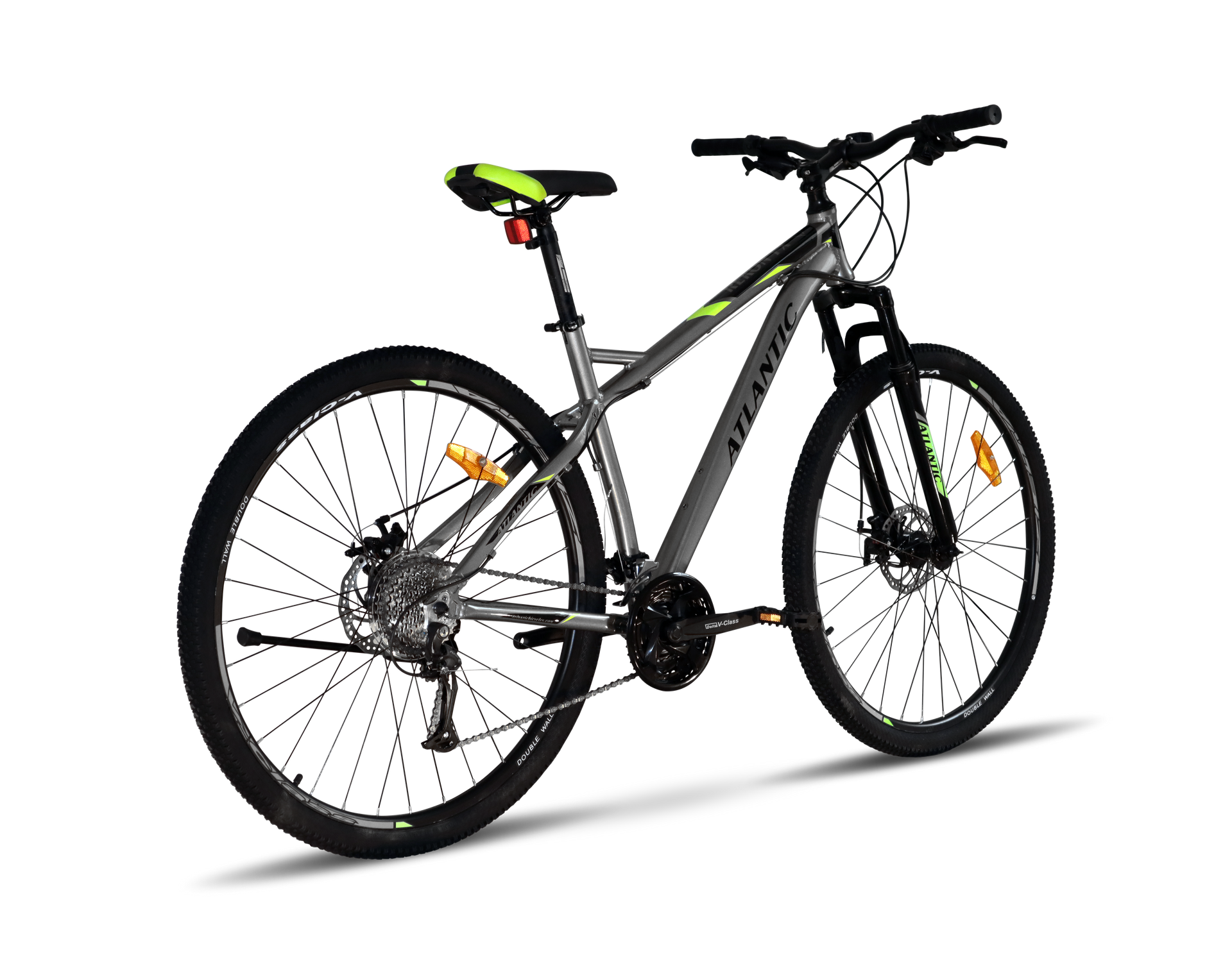

Rekon FX

  • Strong and lightweight alloy frame with lowered top center tube
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy levers
  • 3x9 speed reliable drive train
  • Index cassette, 11-36T

Description


The Atlantic Recon FX mountain bike is made with a lightweight and durable aluminum frame that is resistant to corrosion and moisture. The lowered top tube of the frame forms a narrow skylight triangle, which allows for easy landing and jumping off the bike without any risk of injury.


The durable V-Class Delta steel suspension fork handles bumps and other bumps in the road surface.


V-Class Zeta mechanical disc brakes with aluminum handlebars provide powerful stopping power and allow you to control any speed conditions on variable and dangerous road sections.


The powerful drivetrain includes 27 speeds (3x9) powered by proprietary Shimano Altus equipment. Trigger shifters, which rotate around the circumference of the steering wheel, provide precise and smooth gear shifting.


Mountain 27,5" and 29" wheels accelerate quickly, good for coasting and high-speed modes.


The seat tube height adjustment allows you to find the best fit for the rider, which is necessary for gambling and long riding on rough terrain.


Quality bike parts from the V-Class manufacturer do not require complex settings, are efficient in operation and have a long service life.

Specification

Frame Atlantic MTB Lite, alloy
Fork V-Class Delta, 80mm, steel
Shifters V-Class KDSG-71, index, 3x9 speed / Shimano Altus SL-M2000, index, 3x9 speed
Front derailleur V-Class SG-QD71, index, 3 speed / Shimano Altus FD-R2000-F, index, 3 speed
Rear derailleur Shimano Altus RD-M370, index, 9 speed
Cassette Skilful CS-310, cassette type, index, 11-36T
Crankset V-Class Delta Pro, 24T/34T/42T, steel
Chain HXC 9
Bottom bracket Sealed Cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Sigma, disk, quick release, alloy
Hub (rear) V-Class Sigma, disk, quick release, alloy
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 27,5" / 29" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 15,4
Color Grey / Black / Lime
Frame size M7 / L9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XS6 M7 L9
A bb center to top of seattube 360 440 490
B top tube parallel 538 562 574
B* top tube horizontal 555 586 605
C chainstay 440 445 445
D headtube length 110 120 125
E head angle 69,5 ° 70 ° 69,5 °
F seat angle 73,5 ° 73 ° 71,5 °
H bb offset 45 50 70
K wheelbase 1061 1092 1103
G seatpost diameter 31,8 31,8 31,8
