Canaria NX

  • Strong and lightweight alloy feminine concept frame
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T
  • Pre-installed durable steel rear rack
  • Equipped with plastic fenders and rear kick standο»Ώ

Description


The bike for the city Atlantic Canaria NX is made with an aluminum feminine concept frame, which is the optimal solution in terms of strength, lightness, protection against corrosion and moisture. The center tube of the profile is significantly lowered, creating free space for the easiest landing, effortless pedaling and jumping off the bike.


Powerful stopping power is provided by V-Class m echanical disc brakes with aluminum handlebar grips, which are cabled to the pads that grip the front and rear wheel rotors.


The bike's drivetrain includes 21 speeds (3x7) and is powered by quality Shimano Tourney equipment. Shimano RevoShift shifters, mounted on the handlebar, are responsible for the index shifting.


The 26''  wheels are good for high-speed modes, rolling and overcoming difficult road surfaces, and the installed protective fenders prevent the splashing of road mud in bad weather and increase driving safety in the dark.


The seat tube height adjustment allows the rider to find the most comfortable position.


The complete set of the bike includes a pre-installed strong rear rack made of steel, on which it is convenient to carry small loads.


Branded and undemanding V-Class bike components give high performance over a long period of use.

Specification

Frame Atlantic ATB Lite FMN, alloy
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta pro, 24T/34T/42T, steel
Chain JX 50
Bottom bracket Sealed cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 26" / 27,5" / 29" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 15,7
Color White / Blue
Frame size M6

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

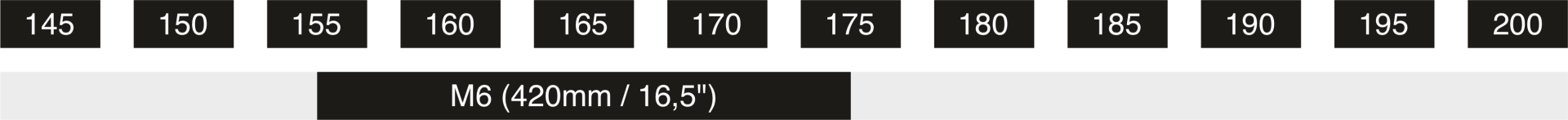

Size chart

Geometry

M6
A bb center to top of seattube 420
B top tube parallel 578
B* top tube horizontal 574
C chainstay 440
D headtube length 130
E head angle 71 °
F seat angle 73 °
H bb offset 45
K wheelbase 1059
G seatpost diameter 31,8
