Orbitron NS

  • Strong and durable steel frame with lowered top center tube
  • Rear foot brake (coaster brake) and front rim brake (V-Brake) with alloy brake levers
  • 3x7 speed reliable drive train
  • Index freewheel 13-28T
  • 24" wheels size

Description


The Atlantic Orbitron NS bike is designed for teens with a sporty steel frame that is durable, lightweight and corrosion resistant. The lowered top tube of the frame allows a smooth fit and easy jumping off the bike. The bike's well-balanced profile is resistant to stress and riding in a variety of road conditions. Designed for boys with a height of 110 to 140 cm.


The bike is equipped with  front and rear v-brake brakes , that are one of reliable and easy in use.


The bike is equipped with a 1x7 speed Shimano Tourney transmission running on Shimano Tourney components, which provides a sufficient supply of gears for city driving and rough terrain. Shimano RevoShift shifters mounted on the steering wheel are responsible for accurate, indexed gear changes.


Wheels with a radius of 24'' are good in acceleration, coasting, speed, as well as in braking.


The adjustable saddle height allows you to choose a comfortable, even fit.


Lightweight, branded attachments are productive in work, do not require complex settings and have a long service life.

Specification

Frame Atlantic Junior Wave Type, steel
Fork V-Class Rigid Junior, steel
Shifters Shimano Tourney SL-RV200, 1x7 speed
Front derailleur -
Rear derailleur Shimano Tourney SL-RV200, 3x7 speed
Freewheel Tri Diamond FW-207, index, 13-28T
Crankset V-Class Delta Junior, 40T, steel
Chain JX C50
Bottom bracket Sealed Cartridge BSA
Brakes V-brake / rear coaster brake
Brake Levers Alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Delta, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Delta, steel
Saddle V-Class X-Race
Headset Atlantic M1 Headset
Rims V-Class Zeta, double wall, alloy
Spokes Stainless Steel
Tires MTB Sport, 24’’x2.125’’
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Approx weights in kg 12,6
Color Red / Black
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

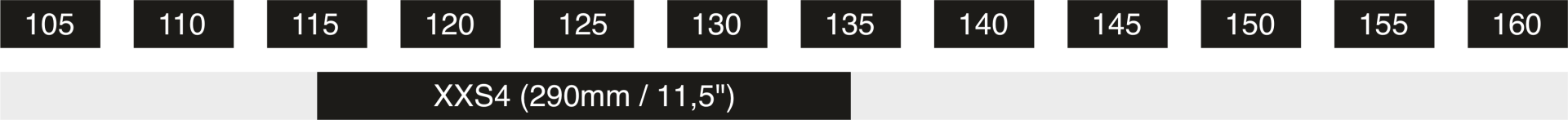

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 512
B* top tube horizontal 537
C chainstay 413
D headtube length 100
E head angle 71 °
F seat angle 72 °
H bb offset 25
K wheelbase 976
G seatpost diameter 31,8
